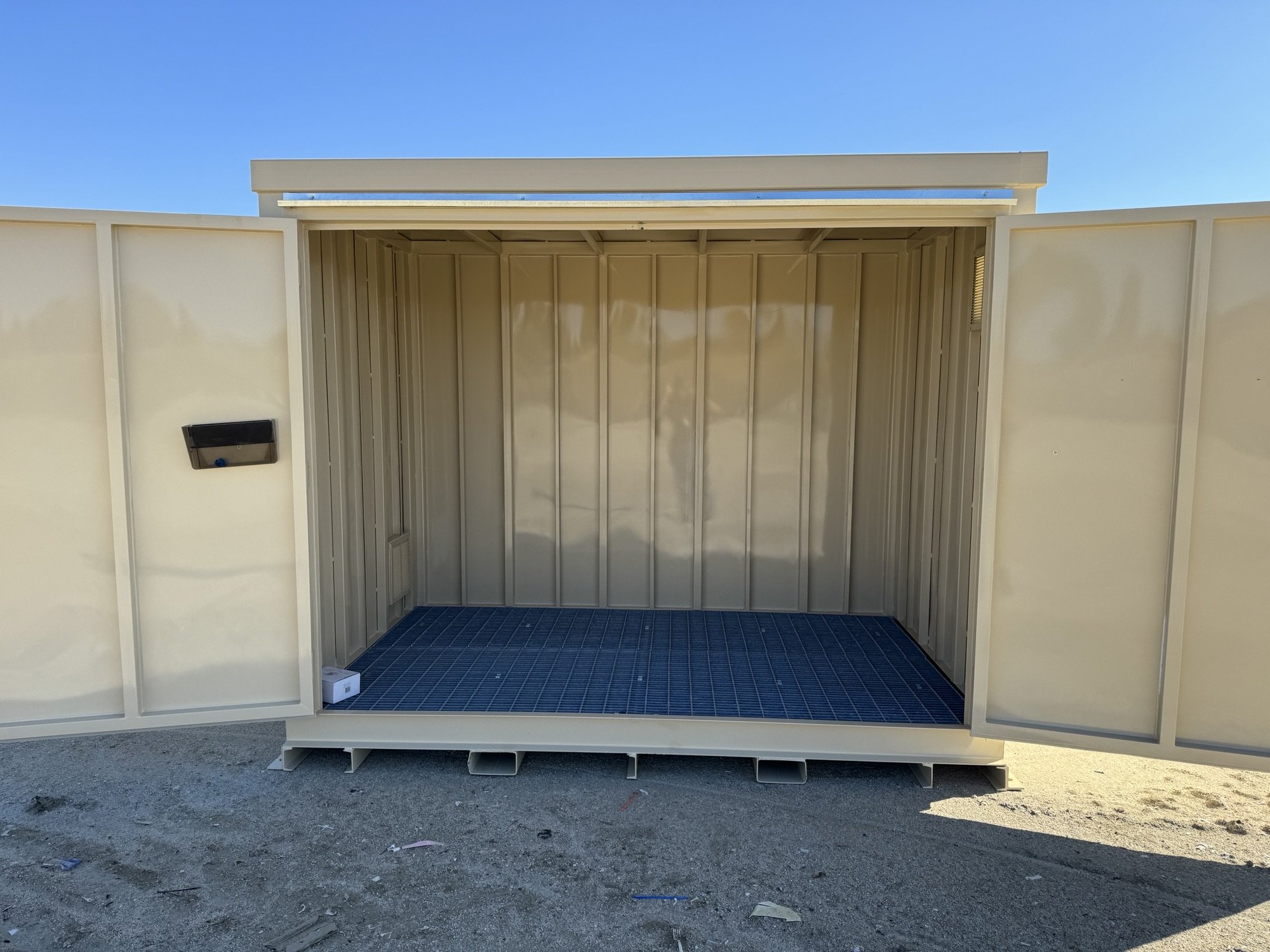

CHEM-STOR Model 10X6-NC Single Wall Steel Hazardous Material Storage Building

10'6" X 6'0" X 8'4" High Exterior

Standard Equipment: 10 Gauge Floor. Heavy Gauge Steel Sheets. Two Part Chemical Resistant Paint Interior and Exterior. Exterior Ground Connection. Galvanized Steel Grate Flooring with removable Galvanized Grating Supports. 6" Deep 220 Gallon Secondary Containment Area. Double Door 9'-0" Wide X 6'-8" High Door equipped with Hold Open, DOT Placards & NFPA Rating Signs, Locking Handle and Interior Safety Release. Air Vents provided to supply Natural Ventilation. Seismic Tie Down Pads. Forklift Pockets.

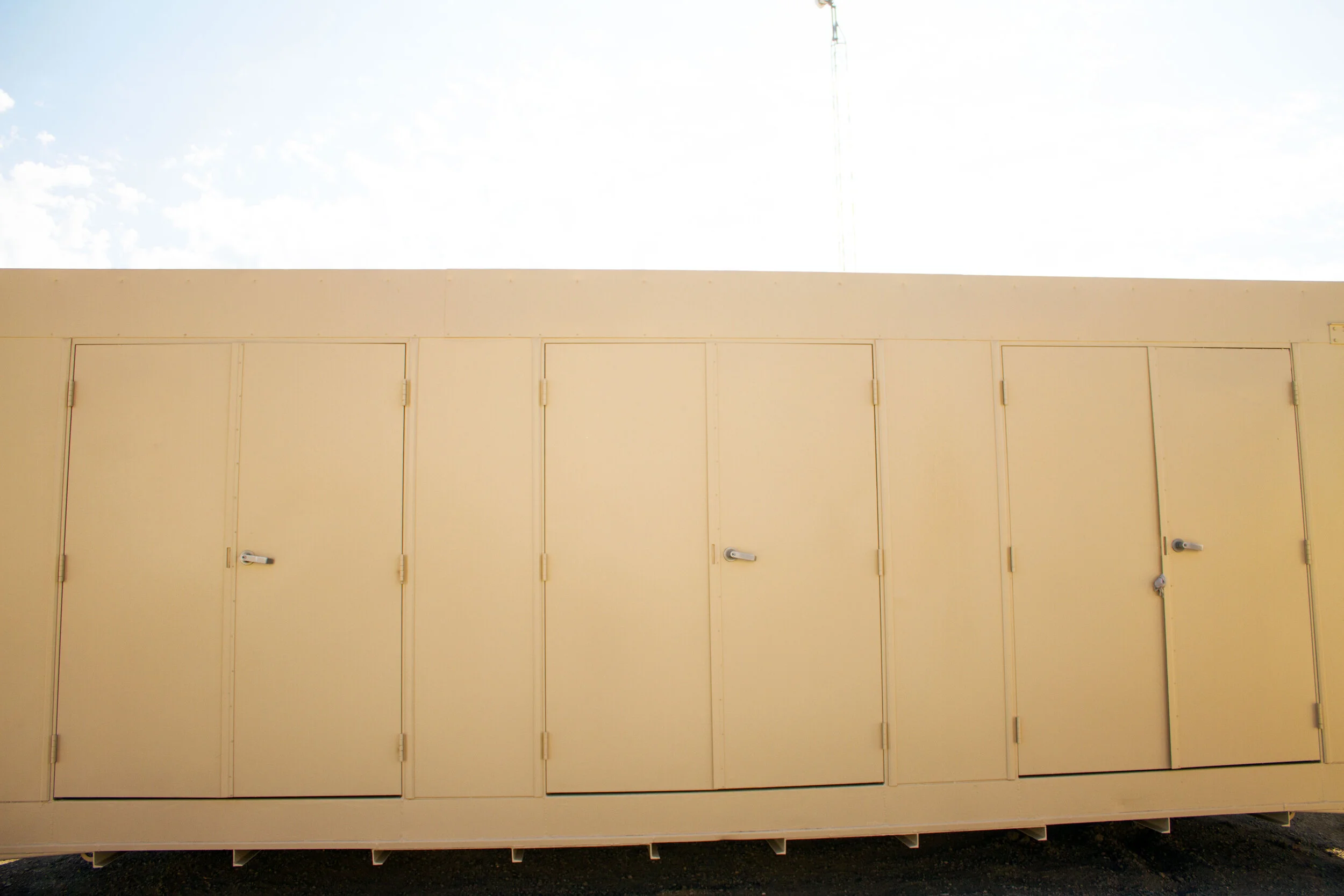

CHEM-STOR Model 40X10-4FR

40'6" X 10'4" X 10'0" High Exterior

Four Hour Fire Rated Insulated Non-Combustible Hazardous Material Storage Building.  10 Gauge Floor.  Heavy Gauge Interior & Exterior Steel Sheets with Tube Frame and Fire Rated Gypsum Wall Board.  R11 Mineral Wool in Wall and Ceiling Cavity.  40'6" X 10'4" X 10'0" High Exterior.  Interior Ceiling Height 8'6".  Dimensions are Approximate and Do not Include Installed Equipment.

• Epoxy Coated Secondary Containment

• Heavy Gauge Steel Walls with Tube Frame and 10 Gauge Floor

• Forklift Pockets

• Seismic Tie Down Pads

• Interior Ceiling Height 8'6" (Approx.)

• Two Part Chemical Resistant Paint Interior & Exterior

• Exterior Ground Connection, Rod and Wire

• DOT Placard & NFPA Rating Sign

• NEMA 3R 100 Amp Load Center 120/240V - 1 Phase.  Requires Connection to Power source by others upon installation.

• 5 Each Class 1 Div 1 Interior Lights - LED Surface Mount 20 Watt Each

• 3 Each Class 1 Div 1 Roof or Wall Mounted Exhaust Fans

• 2 Each Class 1 Div 1 Receptacles

• Dry Chemical Fire Suppression System tied into Alarm Bell.  Requires activation by others upon installation.

• 2 Each 2 Hour Fire Rated Separation Walls Creating 3 Separate Rooms

• 2 Each 4'-0" Wide X 6'-8" High Access Doors. 3 Hour Fire Rated with Panic Push Bar, Keyed Lock, Self Closing Device and Interior Safety Release

• 1 Each 5’-0” Wide X 6’-8” High 3 Hour Fire Rated Roll Up Door with Exterior Slide Lock and Manual Pull Chain
